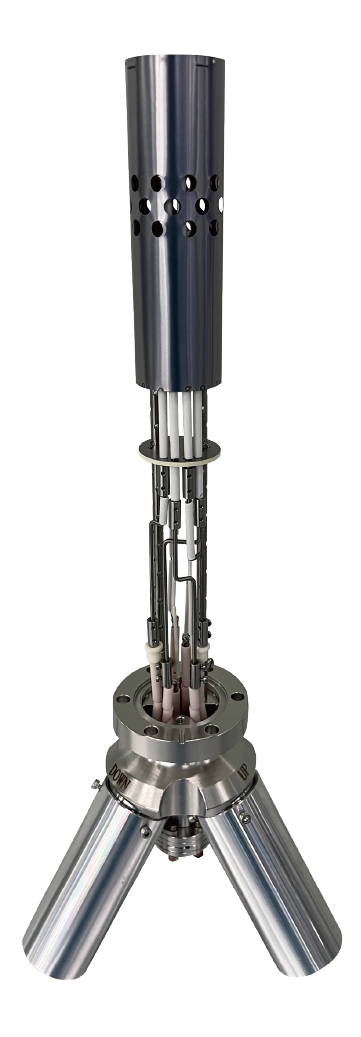

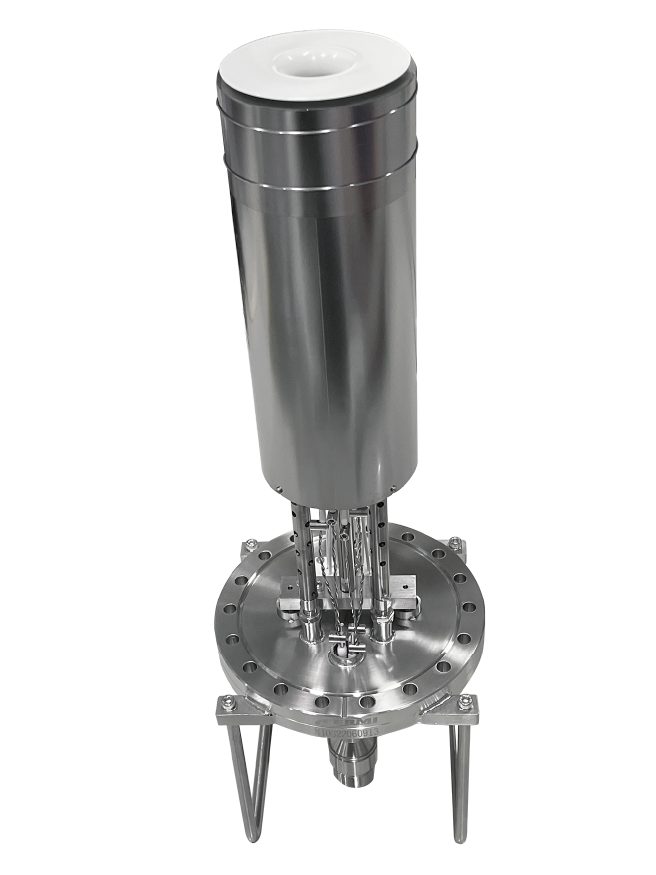

HL Series Evaporation Source

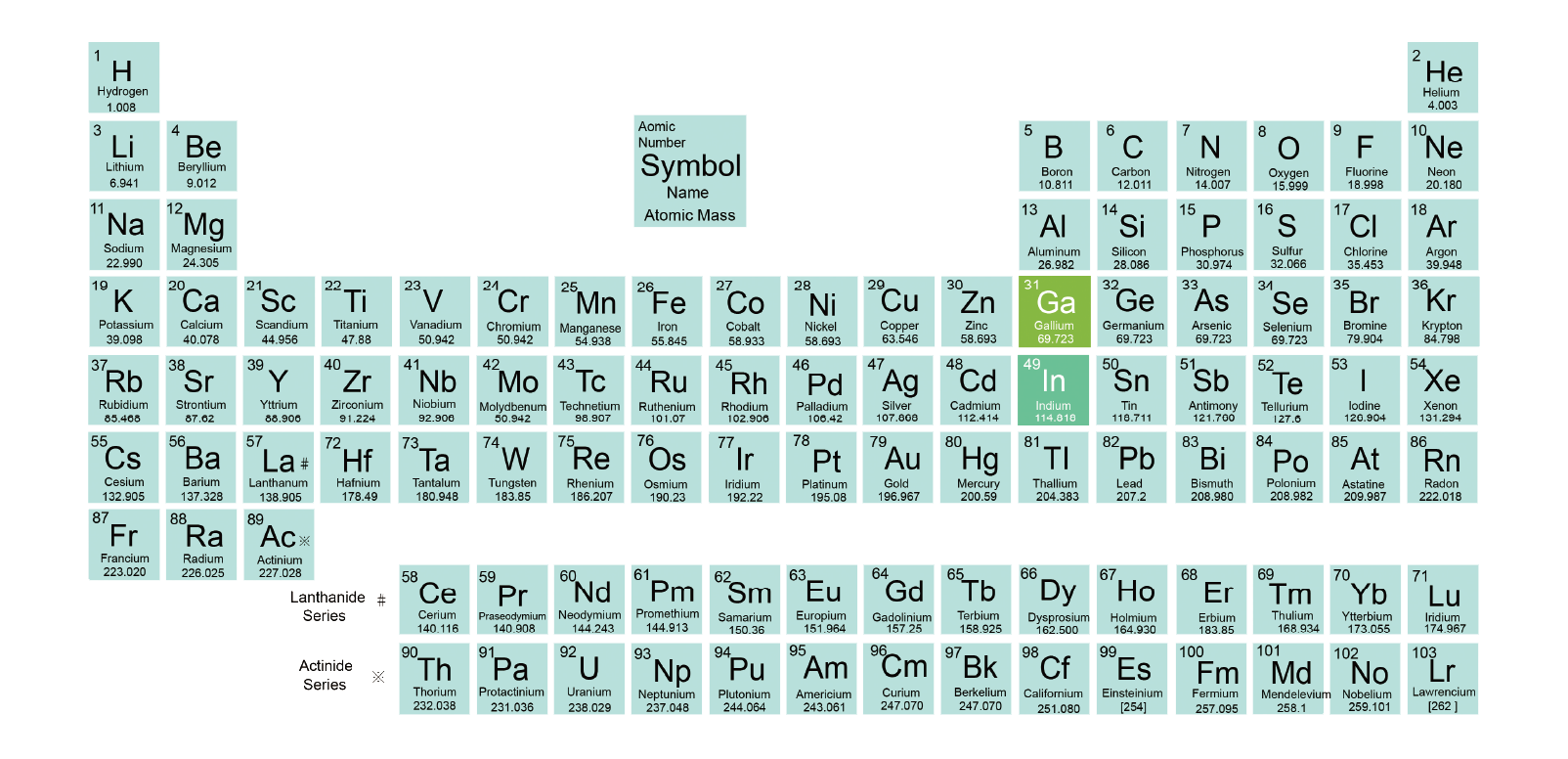

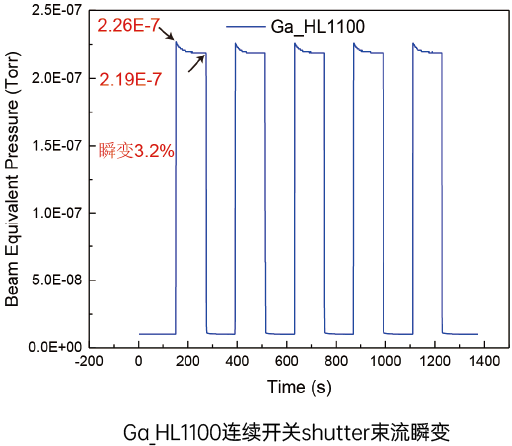

HL series evaporation sources are usually suitable for materials such as Ga and In. They adopt a bottle-shaped crucible and a double heating wire structure design. The upper and lower temperature zones are independently controlled to achieve a positive temperature gradient, avoid condensation of materials at the mouth of the crucible, and thus reduce the density of elliptical defects. With its unique crucible shape, the HL series evaporation source can significantly increase the loading volume, extend the average material evaporation time, and greatly reduce the degree of beam change at the moment of opening and closing the shutter. In addition, the bottle-shaped crucible helps to form a constant liquid surface, which can provide excellent uniformity, long-term stable beam intensity and good beam repeatability. According to the amount of material in the crucible, adjust the temperature gradient of the upper and lower temperature zones to optimize the beam uniformity.
