HDMI industrial camera has 16 million pixels and is equipped with 13-130mm 10x zoom lens. It supports manual adjustment of focus, aperture and zoom, and is used in occasions that require variable viewing angles. It can be applied to CF40 window and CF63 window. Its main applications include system observation, machine vision, robotics, etc.
This product can be directly connected to the display via HDMI, which requires external power supply DC 12V. HDMI connection to the display can adjust camera parameters (white balance, exposure, sharpness, saturation, crosshairs, etc.), and can achieve customized display effects. It also supports TF card, and recorded videos and photos can be stored in TF card.
This product can also be directly connected to the PC via USB interface without external power supply, and the PC can directly power it. Compatible with Windows 7 and Windows 10 system's built-in camera software, no driver installation required, plug and play.

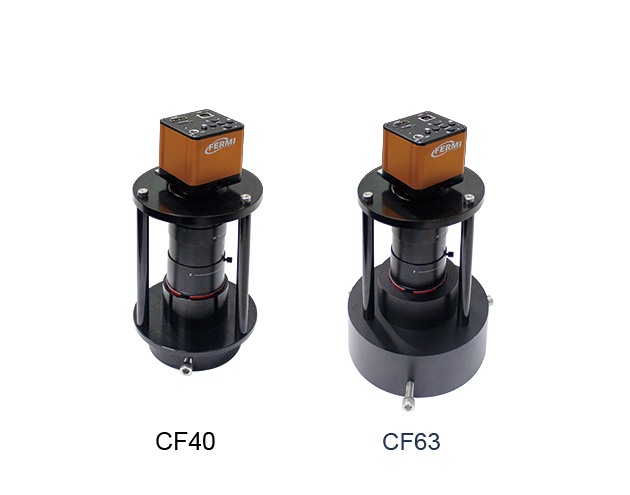

| ● Support CF40 and CF63 window installation | ● Rich camera interfaces, including HDMI*1 (Type A), USB (Type B), TF card slot | ● With 16 million pixels, CMOS sensor |
| ● Image color supports black and white, color |
| Camera parameters | Lens parameters | ||
| Pixel size | 1.335μm* 1.335μm | perspective(HOR) | 18.0-3.6 |
| Video resolution | 2K@30fps, 1080@60fps | magnification | 0.084mm~0.84mm |
| Voltage input | DC 12V | focal length | 0.15m~0.45m |
| energy consumption | Maximum 0.15W (12V, 0.12A) | Lens mount | C |
| TF card | Maximum support 64G | Aperture | F5.6~F32C |
| Image resolution | 4608*3456 (for TF card), 1920*1080 (for USB) | M.O.D. (m) (minimum working distance) | 0.1524 (6") |

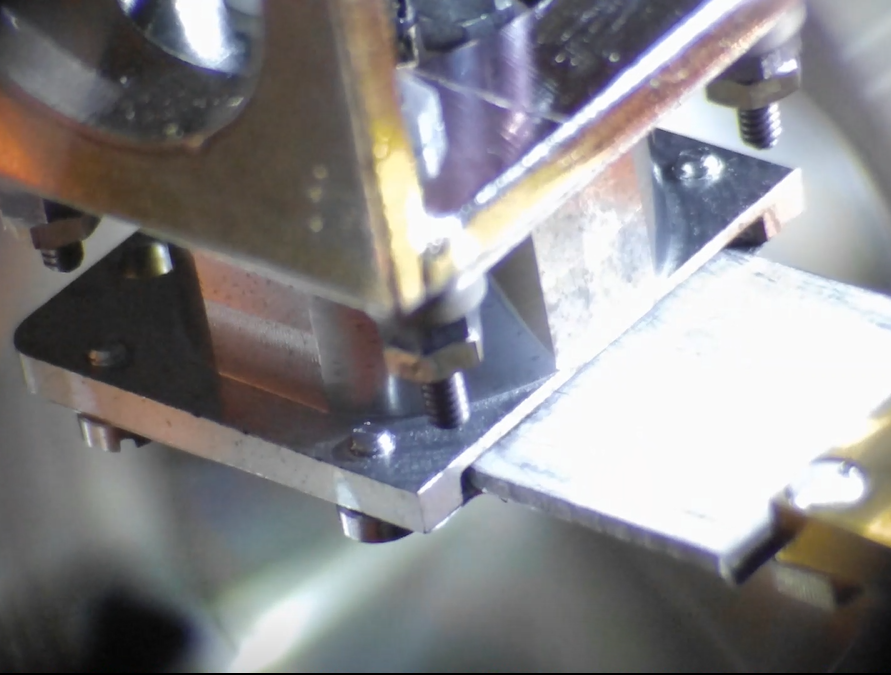

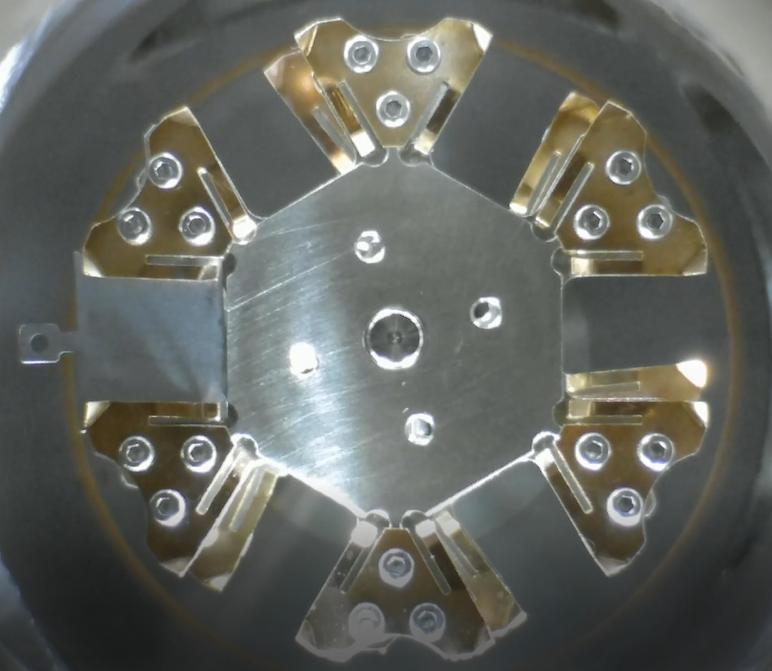

| —— Close focus → partial magnification to observe details —— | —— Long-distance focus → Overall zoom out Observation status—— |
 |  |
