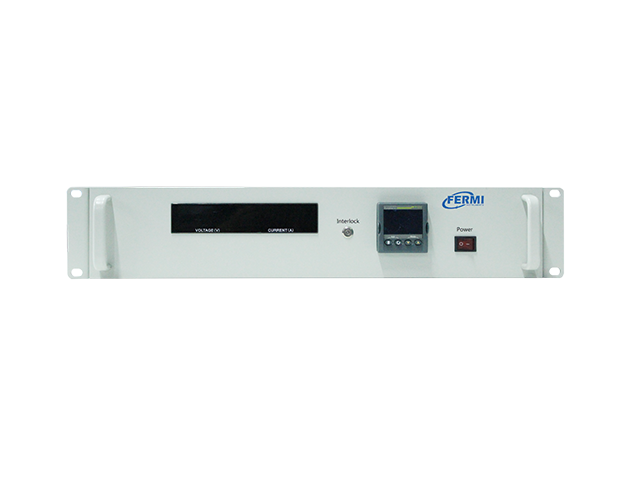

The DC temperature-controlled power supply integrates the Eurotherm 3000 series temperature controller with the DC power supply. The power supply output is PID-controlled through temperature feedback, which can achieve stable temperature control. Common usage scenarios include low-temperature, medium-temperature, and high-temperature evaporation sources, sample racks, and reaction cells of Fermian instruments.
| ● 19-inch 2U standard chassis integrated design, easy installation and wiring | ● Eurotherm 3000 series temperature controller is used, with a temperature control accuracy of ±0.1 degrees Celsius | ● Built-in 600/1200W DC programmable current source, voltage/current ratio can be customized |
| ● Equipped with multi-channel temperature control software, it can connect multiple temperature control power supplies, including basic parameter settings and temperature, current, and voltage curve recording functions | ● The upper limit of the increase/decrease speed of the current output value can be set separately to protect the fragile filament | ● Can be connected to an external alarm signal, automatically cool down at a constant speed after being triggered, and protect the heating equipment at critical moments |
| Model | Specifications | Thermocouple Type | Common combinations |
| TCPS-DC-K5010 | TCPS-DC-2K5010 | K type | Standard low-temperature evaporation source, high-temperature and high-pressure reaction pool; Phosphorus cracking (need to match DCPS-D3040); Dual temperature zone cracking source (need to match TCPS-DC-C2520) |
| TCPS-DC-C5010 | 3016 DC temperature controlled power supply 50V 10A | Type C | Standard medium temperature Evaporation source |
| TCPS-DC-C2520 | 3016 DC temperature control power supply 25V 20A | C type | Dual temperature Zone cracking source (requires matching TCPS-DC-K5010) |
| TCPS-DC-C3040 | 3016 DC temperature control power supply 30V 40A | C type | Standard high temperature and ultra-high temperature evaporation source |
| TCPS-DC-C6020 | 3016 DC temperature control power supply 60V 20A | C type | CF63 medium temperature evaporationSource; Dual temperature zone medium temperature source (requires 2 C-type thermocouples) |
| TCPS-DC-K2520 | 3016 DC temperature control power supply 25V 20A | K type | High temperature sample rack |
| TCPS-DC-K1504 | 3016 DC temperature control power supply 150V 4A | K type | High temperature sample holder |
| TCPS-DC-KP5010 | 3004 DC temperature controlled power supply 50V 10A | K type+PT100 | High ( Low) temperature sample holder |
| TCPS-DC-P5001 | 3016 DC temperature control power supply 50V 1A | PT100 | Cryostat, infrared reaction cell |
| TCPS-DC-2K1504 | 3004 DC temperature controlled power supply 150V 4A | K type+K type | High ( Low) temperature sample holder |
| TCPS-DC-2K2520 | 3004 DC temperature control power supply 25V 20A | K type+K type | High ( Low temperature sample holder |
| TCPS-DC-2P5001 | 3004 DC temperature control power supply 50V 1A | PT100+PT100 | Low temperature constant temperature device, infrared reaction cell |
| TCPS-DC-2K2520 | 3004 DC temperature control power supply 25V 20A (resistant) | K type+K type | High ( Low temperature sample holder |
| TCPS-DC-2K5010 | 3004 DC temperature control power supply 50V 10A | K type+K type | High (low) temperature sample rack |
*K-type thermocouple default temperature range: -200~ +1372℃
* PT100 thermal resistor default temperature measurement range: -200~ +850℃
* Default temperature range of C-type thermocouple: 0~ +2320℃
* Available Freely match the temperature control power supply according to the actual use of the product
| ● Bakeable temperature control output cable | ● USB-RS485 communication cable | ● USB extension cable: 5 meters, 10 meters |
| ● 8-way serial port server |
DC temperature control/programmable power supply output cable selection list
| Material number | Model | Specification | Withstand maximum current | Length | Thermocouple type |
| 30301301 | TCC-K1007 | Temperature control output line | 10A | 7m | K type |
| 30301302 | TCC-K1010 | 10A | 10m | K type | |
| 30301320 | TCC-K2010 | 20A | 10m | K type | |
| 30301333 | TCC-2K3010 | 30A | 10m | K type+K type | |
| 30301306 | TCC-C1007 | 10A | 7m | Type C | |
| 30301307 | TCC-C1010 | 10A | 10m | Type C | |
| 30301331 | TCC-C3007 | 30A | 7m | Type C | |
| 30301332 | TCC-C3010 | 30A | 10m | Type C | |
| 30301334 | TCC-C4007 | 40A | 7m | Type C | |
| 30301335 | TCC-C4010 | 40A | 10m | Type C |
