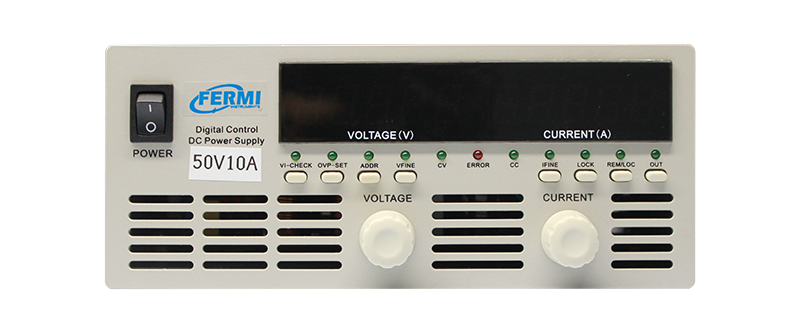

DCPS high-power digital control DC power supply is a continuously adjustable DC constant voltage and constant current power supply. This series of power supplies adopts soft switching technology to reduce the switching loss of high-frequency switching power supplies and achieve high-efficiency and high-reliability conversion functions. In addition, the power supply adds remote control detection function on the basis of providing local operation, which greatly improves the flexibility and wide application of the power supply product. In conjunction with the small temperature controller TC-K/C series, this power supply can be widely used in temperature control of various evaporation sources and sample racks
| ● 19-inch 2U standard chassis, DCPS-D5010 is a narrow version chassis, the width is only half | ● With constant voltage and constant current functions | ● Low ripple, high stability |
| ● Output voltage and current are continuously adjustable | ● Adopting ZVZCS switching mode, it has high conversion efficiency | ● Overvoltage, overheating and AC input over- and undervoltage protection |
| ● Parameters can be calibrated by software | ● Local and program-controlled dual operation modes |
| Model | Specifications | Thermocouple type | Common collocations |
| DCPS-D3020 | Low voltage programmable DC power supply 30V 20A | / | Simple gold source |
| DCPS-D3040 | Low voltage programmable DC power supply 30V 40A | / | Phosphorus cracking (requires TCPS-DC-K5010) |
| DCPS-D5001 | Low voltage programmable DC power supply 50V 1A | / | Ozone system |
| DCPS-D5010 | Low voltage programmable DC power supply 50V 10A | / | Gas cracking (need to match HVPS-P2003) |
| ● AC input 220VAC±10% 50/60Hz | ● Power consumption 600W | ● Output voltage 0-50VDC |

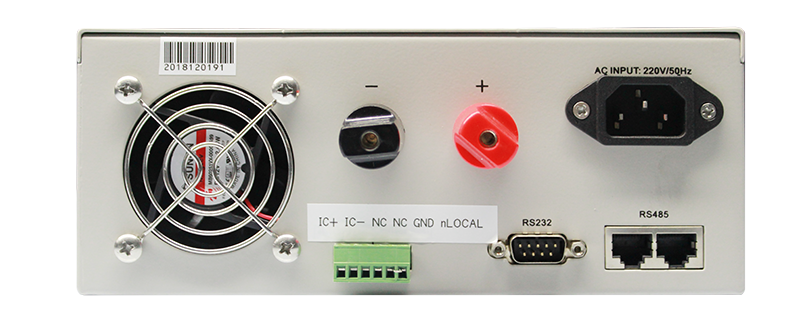

| ● Output current 0-10A | ● Analog input current 0-20mA | ● Control mode: Localized control/Analog control mode/RS48 |
| Material number | Model | Specification | Withstand maximum current | Length | Thermocouple type |
| 30301301 | TCC-K1007 | Temperature control output line | 10A | 7m | K type |
| 30301302 | TCC-K1010 | 10A | 10m | K type | |
| 30301320 | TCC-K2010 | 20A | 10m | K type | |
| 30301333 | TCC-2K3010 | 30A | 10m | K type+K type | |
| 30301306 | TCC-C1007 | 10A | 7m | Type C | |
| 30301307 | TCC-C1010 | 10A | 10m | Type C | |
| 30301331 | TCC-C3007 | 30A | 7m | Type C | |
| 30301332 | TCC-C3010 | 30A | 10m | Type C | |
| 30301334 | TCC-C4007 | 40A | 7m | Type C | |
| 30301335 | TCC-C4010 | 40A | 10m | Type C |
After receiving the information, our sales personnel/product engineers will contact you
Some products can be customized according to your needs
Your information will be kept confidential throughout the entire process
