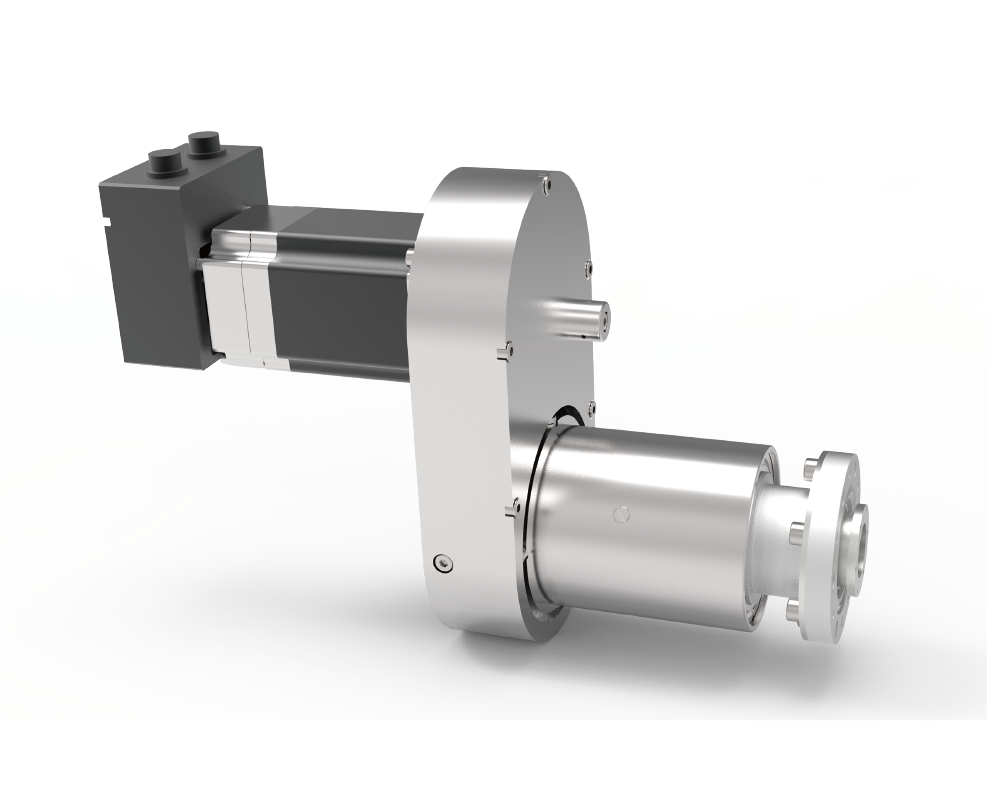

Hollow magnetic coupling rotary drive adopts magnetic coupling drive, which has a rotatable hollow shaft inside, which can provide smooth rotational motion and allow electricity, fluid or other substances to pass through the hollow shaft inside. It has the characteristics of high load, high torque, and high speed.
| ● Drive mode: magnetic coupling | ● Apply to 10-11 mbar ultra high vacuum environment | ● Baking temperature: 150°C（Remove the motor and its components） |
| ● Rotation range: 360°（Can rotate continuously） | ● Texture of material: Ultra high vacuum compatible material | ● Upper end installation flange: CF flange, threaded hole |
| ● Bottom installation flange: CF flange, through-hole | ● Acceptable customization |

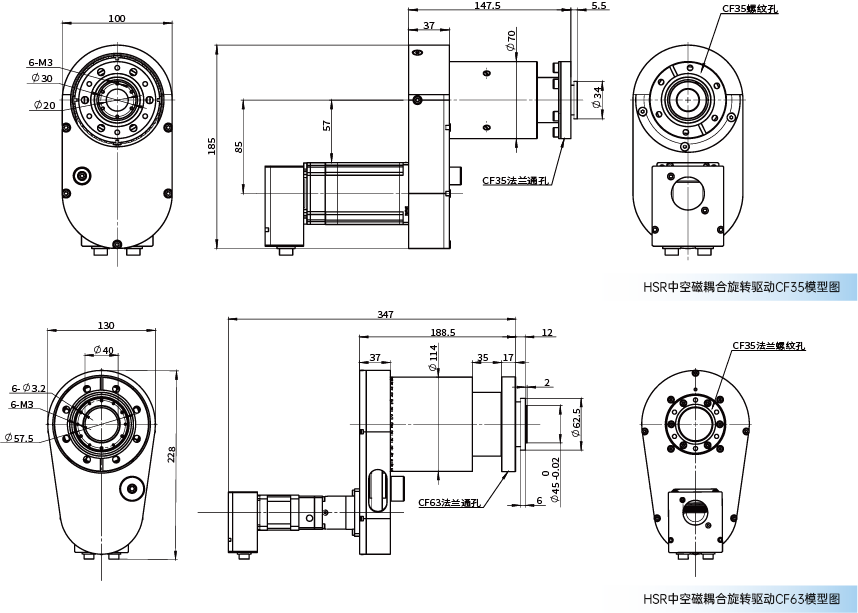

| Product Name | Hollow magnetic coupling rotational drive（HSR） | ||||
| Mounting flange | CF35 | CF63 | |||
| Flange size | mm | 70 | 114 | ||
| Inch | 2.75 | 4.5 | |||
| Rotation angle | 360° | 360° | |||
| Maximum decoupling torque | 6N·m | 15N·m | |||
| Drive | Hand movement | Stepping motor | Hand movement | Stepping motor | |
| Resolution | 1° | 0.01° | 1° | 0.001° | |
| Weight (kg) | 3.0 | 5.0 | 6.9 | 8.0 | |
| Model | HSR35M | HSR35A | HSR63M | HSR63A | |
| Order code | 3040100001 | 3040100002 | 3040100003 | 3040100004 | |
After receiving the information, our sales personnel/product engineers will contact you
Some products can be customized according to your needs
Your information will be kept confidential throughout the entire process
