MBE high temperature manipulator -5-axis

The 5-axis MBE high-temperature sample holder can provide translational motion of samples in the X, Y, and Z directions, as well as rotation angles R1 (Polar) and R3 (Azimuthal) around the Z axis. Among them, X, Y, Z, and R1 are achieved through XYZ-R1 vacuum displacement table, R3 is achieved through the gear transmission mechanism of the sample holder head. The unique filament heating structure ensures that the sample holder temperature can reach 1200K. The entire sample manipulation system mainly consists of three parts: sample rod, temperature control system, and XYZ-R1 displacement table. The entire sample rack and displacement stage are made of non-magnetic materials, which can be used under ultra-high vacuum.
● Maximum temperature of sample holder: 1200K (radiation heating), 1500K (electron beam heating)
● Multiple degrees of freedom: X. Y, Z, R1, R3 five degrees of freedom motion
●  Accurate temperature control: PID temperature control accuracy can reach ± 0.1K
●  Compatible with multiple functional modules;

Description
R1 Axial rotation
±179°
X/Y Trip
±12.5mm
Z Trip
Maximum 300 mm
In-plane rotation360°
Related accessories
●  Liquid nitrogen cooling module●  E-beam Heating
●  High and low temperature thermal isolation module●  Infrared temperature measurement component

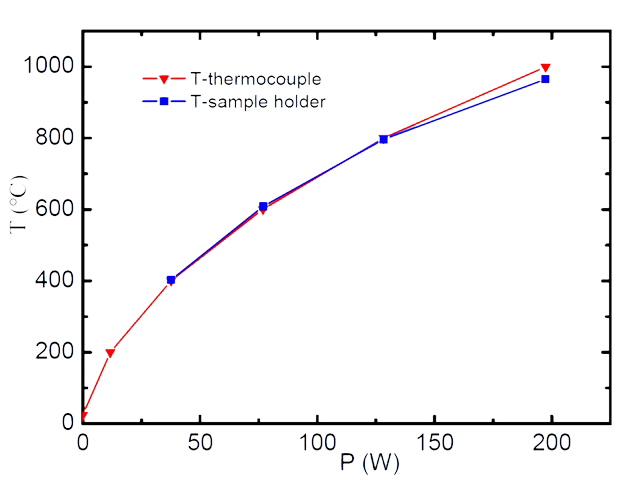

Heating test curve chart
