MBE high-temperature sample holder -4-axis

The 4-axis MBE high-temperature sample holder can provide translational motion of the sample in the X, Y, and Z directions and a rotation angle R1 (Polar) around the Z axis. The unique filament heating structure ensures that the sample holder temperature can reach 1200K. It mainly consists of three parts: sample rod, temperature control system, and XYZ-R1 displacement table. The entire sample rack and displacement stage are made of non-magnetic materials, which can be used under ultra-high vacuum.

Technical specifications
● Maximum temperature of sample holder:1200K (radiation heating), 1500K (electron beam heating);● Multiple degrees of freedom: X、Y、Z、R1 Four degrees of freedom motion;
● Accurate temperature control:The PID temperature control accuracy can reach ± 0.1K;● Compatible with multiple functional modules;

R1 axial rotation±179°
X/Y Trip±12.5mm
Z TripMaximum 300 mm

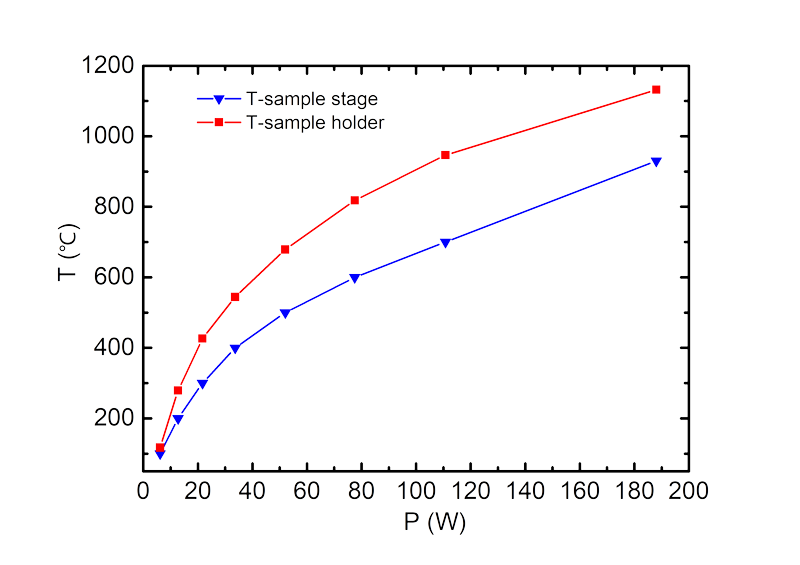

Test curve chart
