The system consists of a rapid injection chamber, a cleavage chamber, a low-temperature sample holder, a cleavage sample holder, and an optical microscope.
Provide abundant parking stations and a temperature range of 100K-470K to achieve cleavage and transfer of thin layer materials.
● Can achieve ultra-high vacuum environment cleavage, with a vacuum degree better than5x10-10mbar | ● Equipped with liquid nitrogen refrigeration, with a minimum temperature of less than 120K | ● Easy to operate, with the help of a robotic arm, two-dimensional material cleavage and transfer can be achieved |
● The flatness of the cleavage plane at the atomic level, resulting in a few layered material through cleavage | ● Standard Flag-typeSample holder, good compatibility, can seamlessly interconnect ARPES,STM,XPSSurface analysis equipment |
Optical microscope | |||
Imported optical lenses | Imported CCD camera | Power zoom | Coaxial illumination |

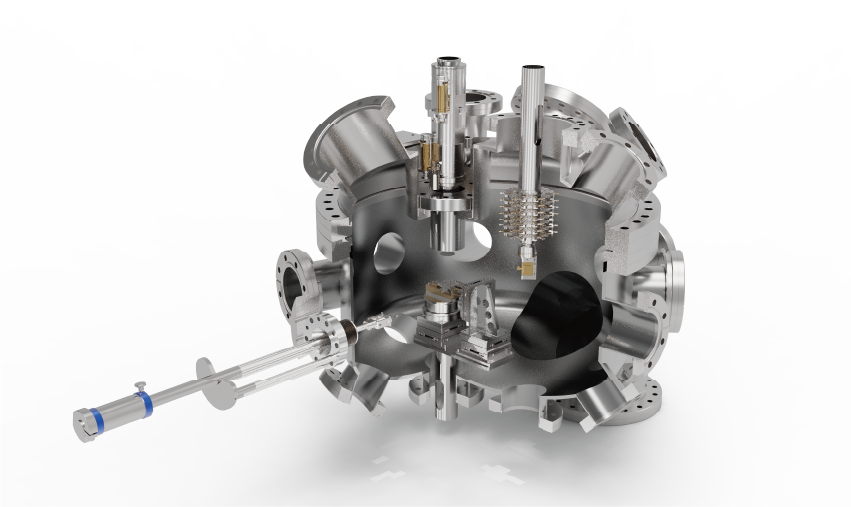

Cleavage chamber | |||
Ultra high vacuum chamber made of SS316 stainless steel material | Flange ports that meet ultra-high vacuum standards | Heating treatment and temperature control | |
Cleavage sample holder | X、Y、Z、R Multi axis piezoelectric displacement stage | ||
Low temperature sample Manipulator | |||
Manual lifting and rotating | Temperature range:100K-300K | Simultaneously parking up to 42 sample holders |
