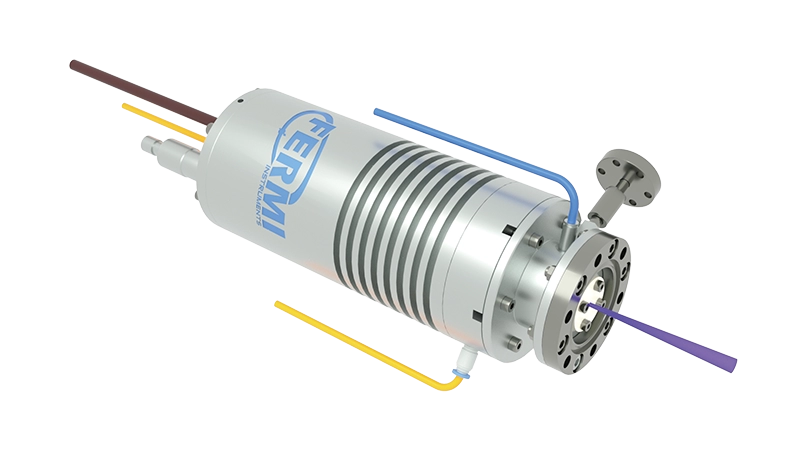

The BL-1030S series vacuum ultraviolet light source independently designed by Fermion Instrument Technology Co., Ltd. uses a three-stage differential cavity, isolates the focusing capillary and the differential cavity through an ultra-high vacuum valve, and can use a variety of working gases such as Ar, Kr, Xe, N2, and H2, covering multiple photon energies of 30 nm-150 nm (41 eV-8.3 eV), and the photon flux reaches 1013 photons/s

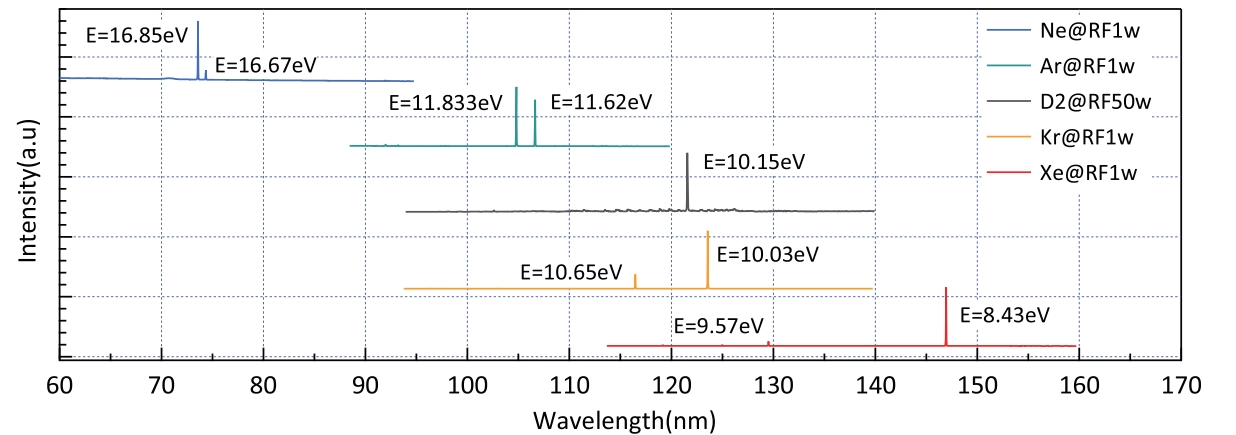

| ● Wide spectrum: 8.43eV ~ 40.8eV (30.3nm-147.6nm) | ● Working gas: He, Ne, Ar, Kr, Xe, ... | ● Power supply: Compact solid-state RF source driven by 24V/200 W power supply |
| ● UHV compatible, full metal seal | ● Long service life: > 20000 hours |
