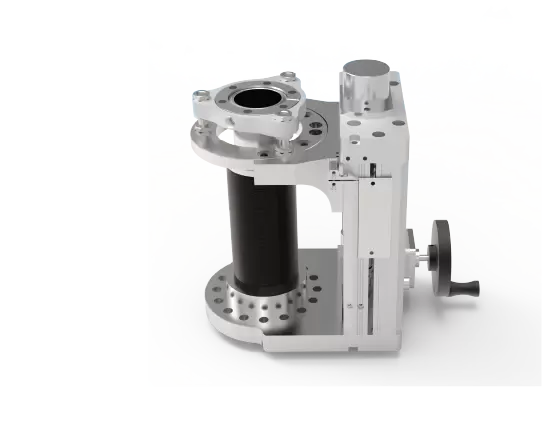

The heavy-duty linear telescopic drive converts the rotational motion outside the vacuum into the linear telescopic motion inside the vacuum. The corrugated pipe seal welded with SS316L material is suitable for ultra-high vacuum environments of 10-11mbar, with small movement increments, smooth operation, high load, and high precision.
| ● Pressure Range: 1bar~10-11mbar | ● Maximum baking temperature:150℃ | ● Welded corrugated pipe material:SS316L |
| ● Mounting flange: CF35 flange,through-hole | ● The scale increments by 1mm | ● Can be installed in any direction |
| ● Acceptable customization |
| Product Name | Heavy duty linear telescopic drive（HLM） | ||||
| Mounting flange | CF35 | ||||
| Flange size | mm | 70 | |||
| Inch | 2.75 | ||||
| Trip(mm) | 25 | 50 | |||
| A stretch(mm) | 63 | 103 | |||
| A compression(mm) | 38 | 53 | |||
| B(mm) | 141 | 231 | 166 | 256 | |
| Drive | Hand movement | Stepping motor | Hand movement | Stepping motor | |
| Resolution | 0.01 | 0.005 | 0.01 | 0.005 | |
| Weight(kg) | 1 | 1.5 | 1.3 | 1.8 | |
| Model | HLM35L25M | HLM35L25AO | HLM35L50M | HLM35L50AO | |
| Order code | 3041300001 | 3041300002 | 3041300003 | 3041300004 | |
