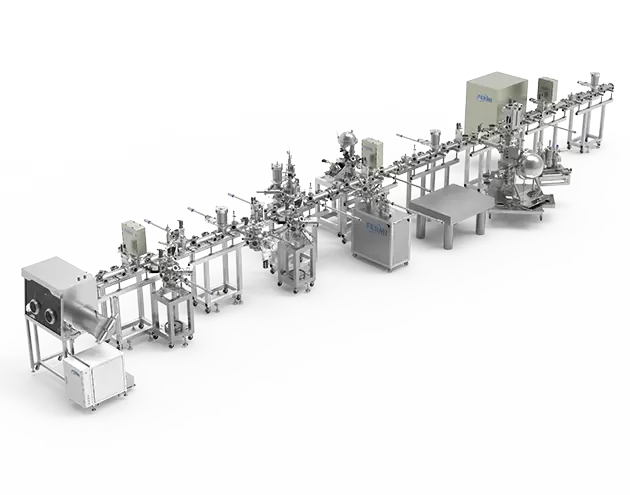

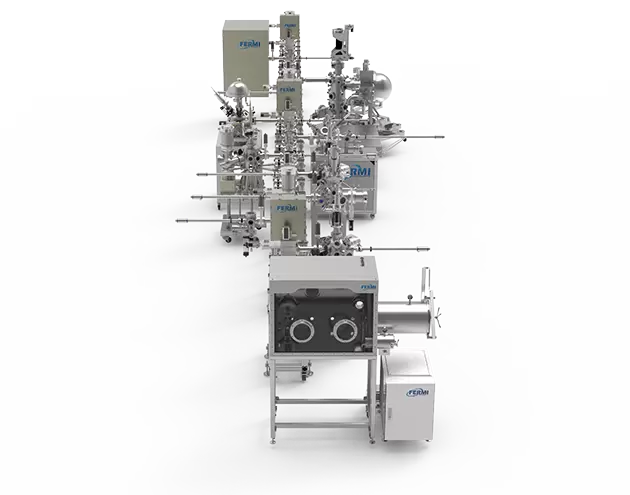

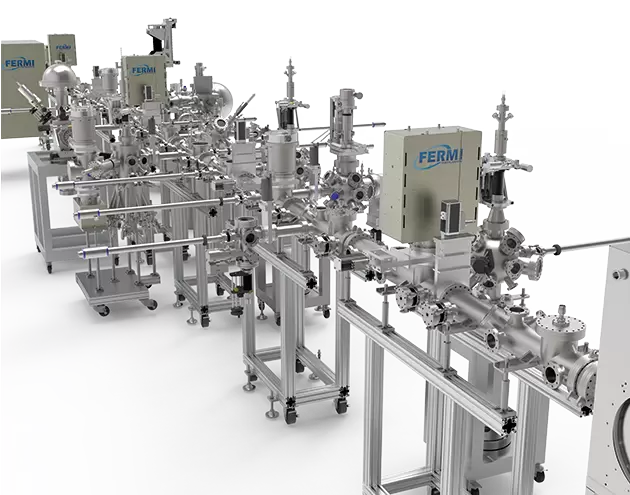

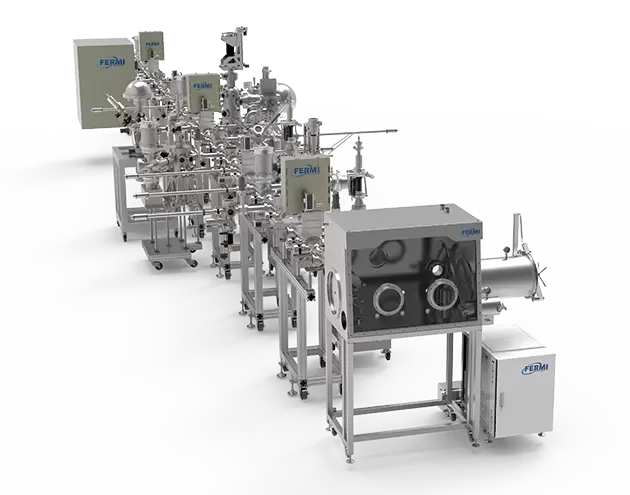

Linear Interconnection System

The linear interconnection system and the circular sample transfer system complement each other and can both achieve the transfer of samples between different systems in ultra-high vacuum environments, but the emphasis is slightly different. The circular sample transmission system is relatively compact and suitable for small-scale laboratory level interconnected construction; The linear interconnection system has a larger sample size and quantity for single transmission, making it suitable for larger interconnection constructions. At the same time, the circular sampling system and the linear sampling system can also be matched with each other, such as matching circles with straight lines, circles with circles, or extending straight lines. Fermion Instrument has rich design and construction experience and case studies for users to refer to.

The linear interconnection system of Fermion Instrument adopts its own intellectual property rights (invention patent number: ZL201611011730.7),  It can automatically pass through flange interfaces and gate valves for the transfer of small vehicles, facilitating long-distance motorized transfer of samples. Unlike many existing interconnected systems, we place the coupling device of the car at the bottom of the system. This structure is more convenient for observing and operating samples, saves installation space, and makes the system more aesthetically pleasing.

Description
LDC1000
CavityInside diameter150mm
System docking flangeNW63CF(Customizable)
Observation port flangeCF63 (Customizable)
MinimumUnit Length2 meters
The longest lengthUnlimited
Pump set matchingMolecular pump group, composite ion pump group(Ion+NEG)
Sample movement speed3 m/min
Mbar<3x 10-10 mbar
Linear repeatability accuracy<0.1mm
Maximum baking temperature150℃
