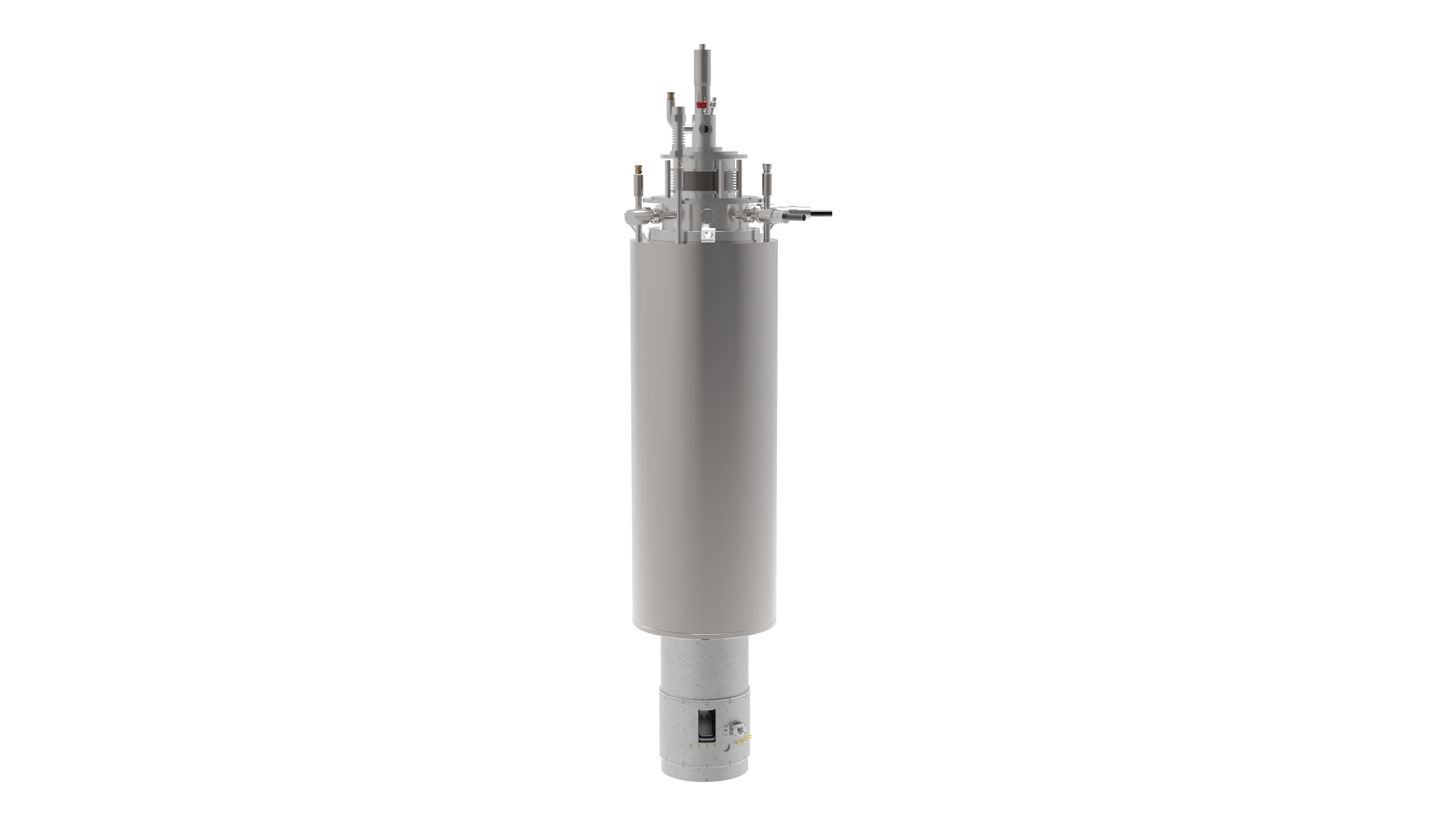

UHV Storage Type Liquid Helium Cryostat

The UHV storage type liquid helium cryostat has the characteristics of ultra-long low temperature maintenance time and ultra-low vibration, and can be used in precision measurement scenarios such as SPM and optical measurement. The thermostat is equipped with a multi-layer radiation-proof cold shield; a liquid helium level gauge to monitor the liquid level; and a variety of electrical feed-through flanges to provide sufficient signal ports. The thermostat supports customization to better meet customer needs.

Technical specifications
● UHV environment compatible, bakeable to 150°CTemperature: 4.2KDN200/250CF base flange
Compatible with SPM scan headLow temperature maintenance time > 100 hours● Equipped with liquid helium level gauge
● Standard liquid volume: 5L LHe/10L LH2; 10L LHe/21L LN2 (optional)



Optional
● Scan head tensioning mechanism● CF300 bottom flangeDN16CF flange for custom wiring
● Custom cold plate and radiation shield designIntegrated sample parking and optical channel cold shield
