Your current location: Home > Products > R&D Instruments > Low temperature products > Cryostat > Liquid nitrogen refrigeration type > Wet Mini OP-100

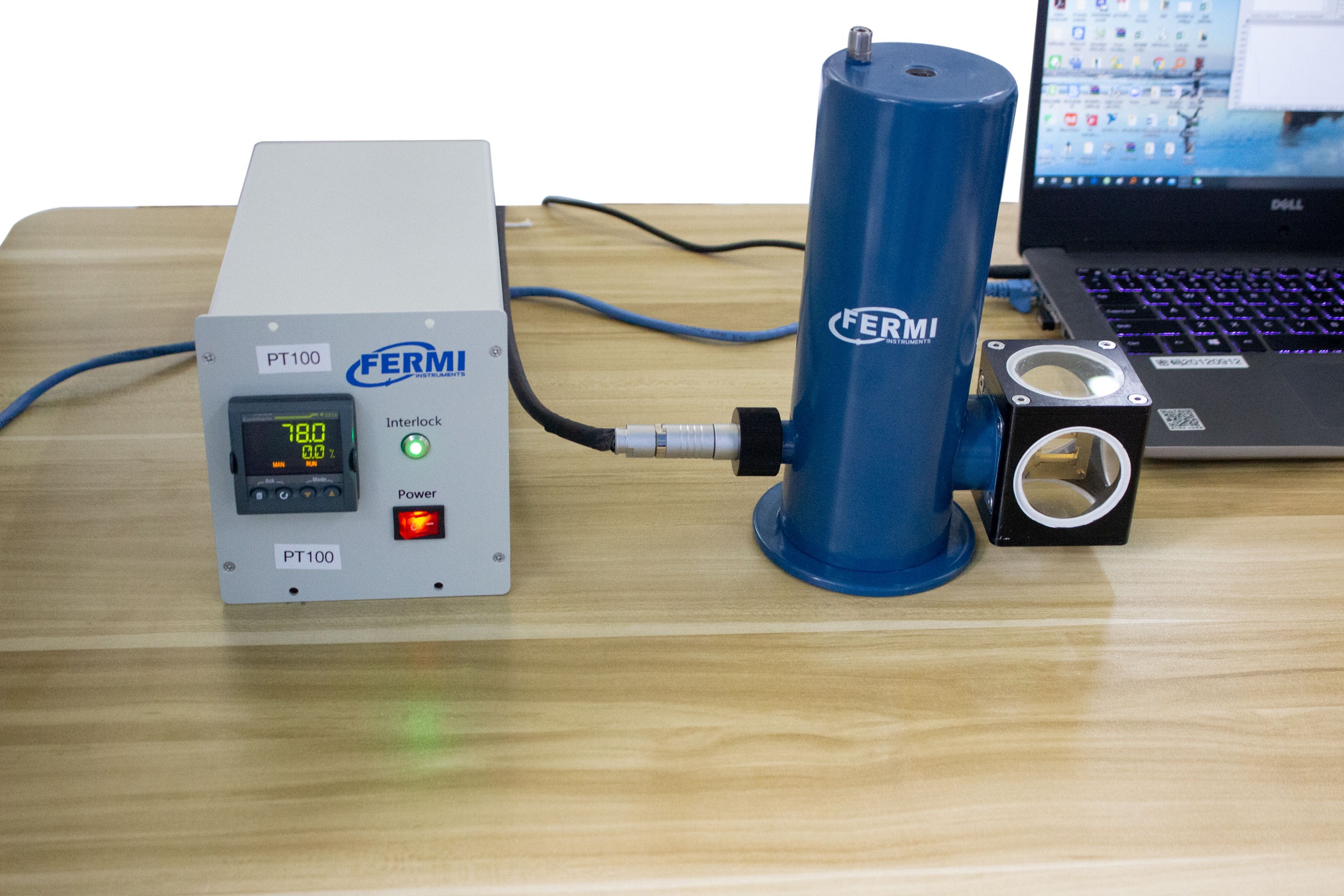

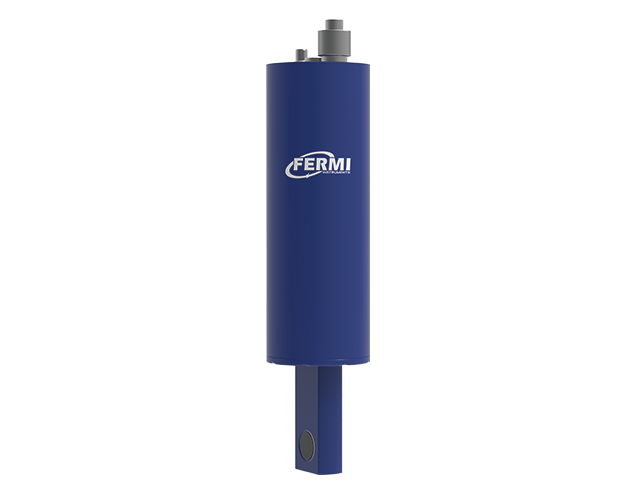

The wet mini low-temperature optical thermostat provided by Fermion Instruments can be used in a variety of low-temperature spectroscopy experiments such as UV/visible light spectroscopy, far infrared spectroscopy, Raman spectroscopy, etc. The customized thermostat can be used with various magnets, microscopes, electrical measurement equipment, STM, SEM and other equipment to realize a multi-functional measurement platform.
| ● Refrigerant: Liquid nitrogen; | ● Low operating cost: Low refrigerant consumption; | ● Refrigerant capacity: 0.4L; |
| ● Temperature range: 80K-400K; High temperature module up to 800K optional; | ● Rapid cooling: RT to the lowest temperature is less than 10min; | ● Temperature stability: ±0.1K; |

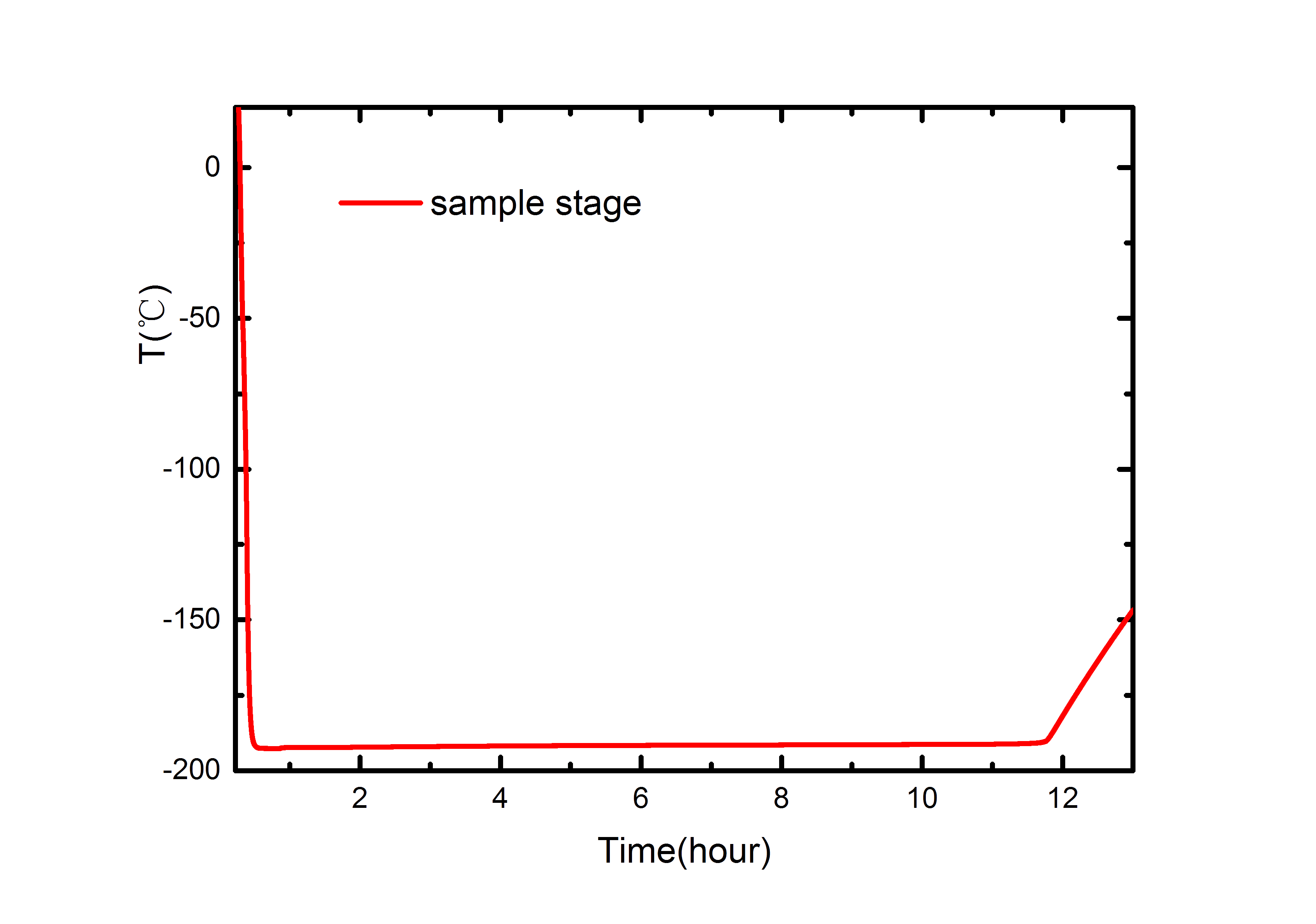

| ● Low temperature maintenance time: ＞10 hours; | ● 10-core electrical feedthrough for electrical measurement; | ● Convenient operation: Sample change is convenient and fast; |
| ● Net weight of thermostat: About 3 Kg | ● A variety of window materials are available; | ● Ultra-high vacuum/interconnection; |
After receiving the information, our sales personnel/product engineers will contact you
Some products can be customized according to your needs
Your information will be kept confidential throughout the entire process
