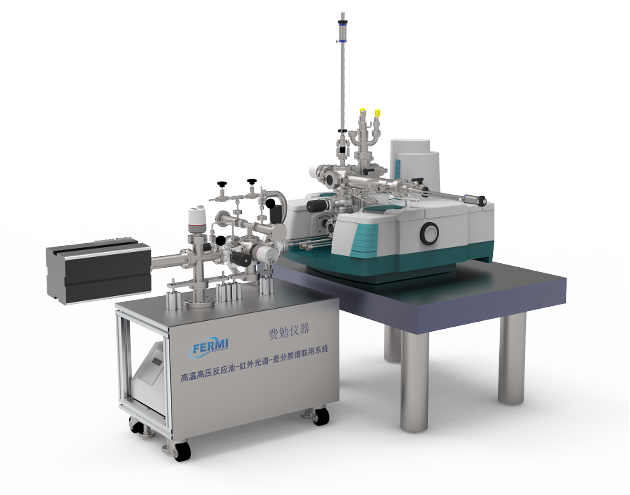

In-situ high-temperature infrared reaction cell, suitable for in-situ device for infrared online testing of heterogeneous catalysis, gas-solid catalysis, and photocatalysis systems under high temperature conditions. This device is mainly aimed at powder samples with high surface area. The maximum operating temperature is 400℃.
| ● This in-situ reaction pool is suitable for infrared online testing of heterogeneous catalysis, gas-solid catalysis, and photocatalysis systems under high temperature conditions; | ● Sample stage heating temperature range: RT-400℃, temperature control accuracy: ±1℃; |
| ● K-type thermocouple is used as temperature sensor; | ● The main body of the device is made of 316L stainless steel, which has certain strength and corrosion resistance; |
| ● The top flange is DN35CF; | ● The dead volume of the pool is small, equipped with 2 infrared windows; |
| ● The device can be inflated and can withstand a certain pressure, the pressure adjustment range: 1-10bar |
