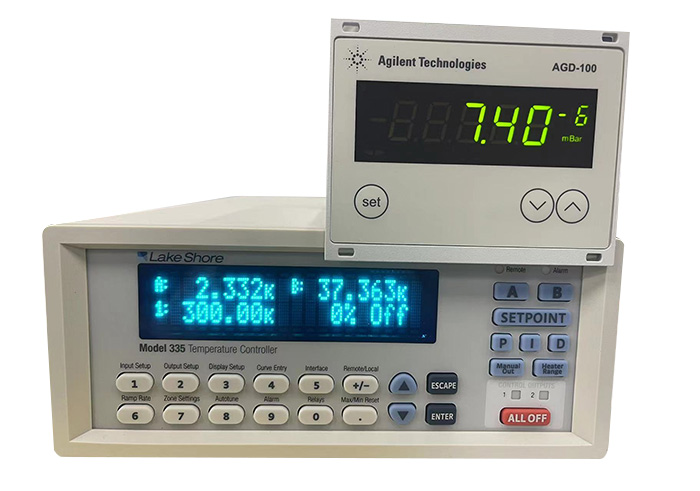

The single-photon detection cryostat is mainly composed of a vacuum chamber, a compressor, a refrigerator, a sample stage, and a temperature control component. The chamber has 8 KF25 interfaces reserved for installing optical fiber or RF line feedthrough. The lowest temperature of the refrigerator sample stage can reach 2.5K (no load), and the temperature control system can achieve precise temperature control at the mK level to ensure the normal operation of the single-photon detector.
| ● GM refrigerator cooling, no liquid helium consumption; | ● Easy operation, low operating cost; | ● Sample stage size: 70mm in diameter; (customizable); |
| ● Sample stage temperature range: 2.5K-350K; | ● Temperature control accuracy: ±0.01K; | ● Integrated and easy to move |
