Temperature programmed desorption system (TPD)

Temperature programmed desorption (TPD) technology is an important technique for studying the interaction between surface active centers and adsorbed molecules. The programmed temperature rise desorption characterization system launched by Fermion Instrument is designed specifically for ultra-high vacuum thermal desorption, combining ultra-high vacuum, program-controlled temperature change, mass spectrometry and other technologies.

Description
  Mbar:Surpass 5E-10mbar  Temperature control accuracy:±0.1K  TPD temperature analysis sample holder:120K-1000K rapid temperature change
  Temperature measurement method:K-type thermocouple  Cooling:Liquid nitrogen pipeline can minimize cooling time to the greatest extent possible  Displacement table:High precision, high-strength 4-axis ultra-high true vacancy stage, capable of achieving optimal positioning of samples

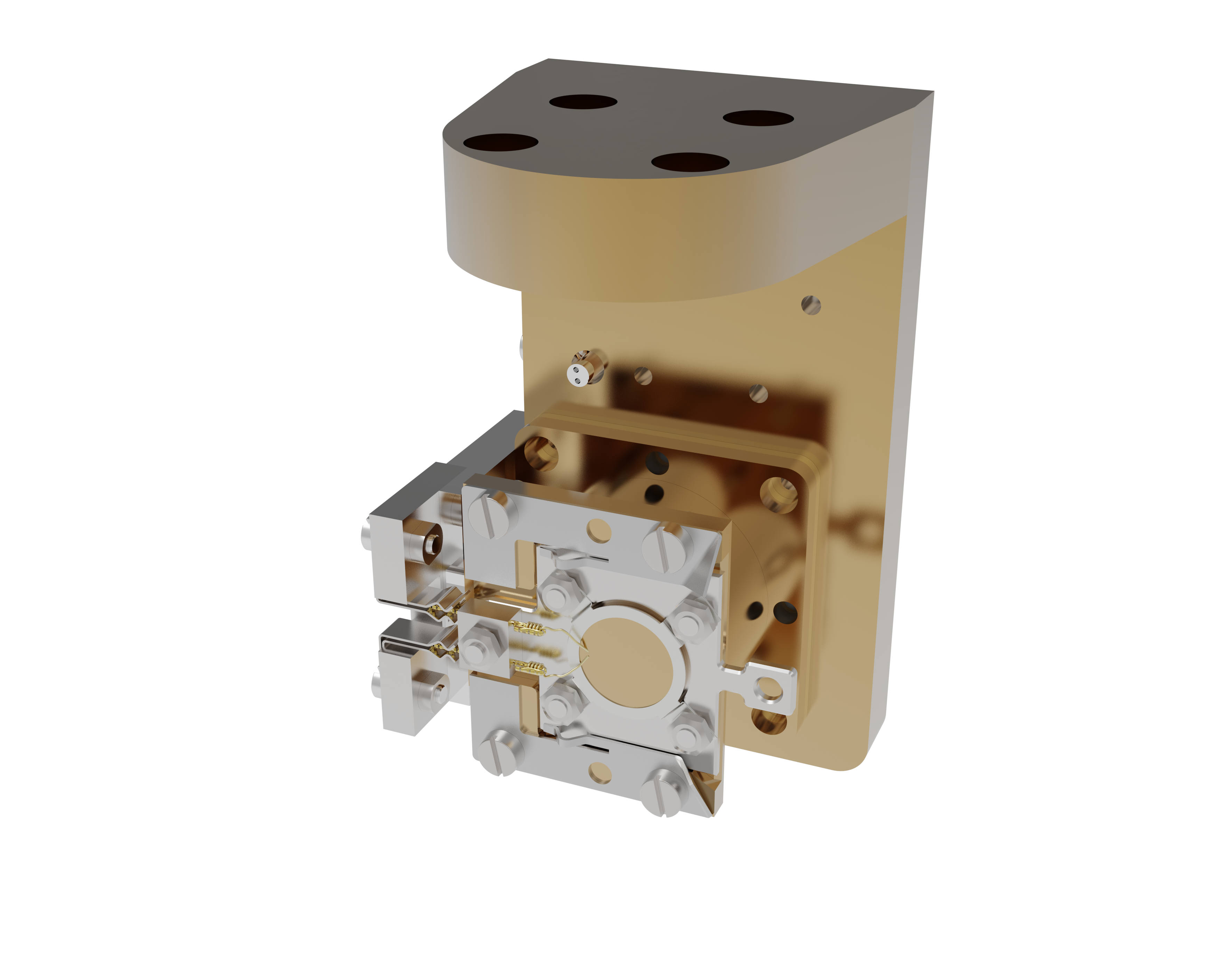

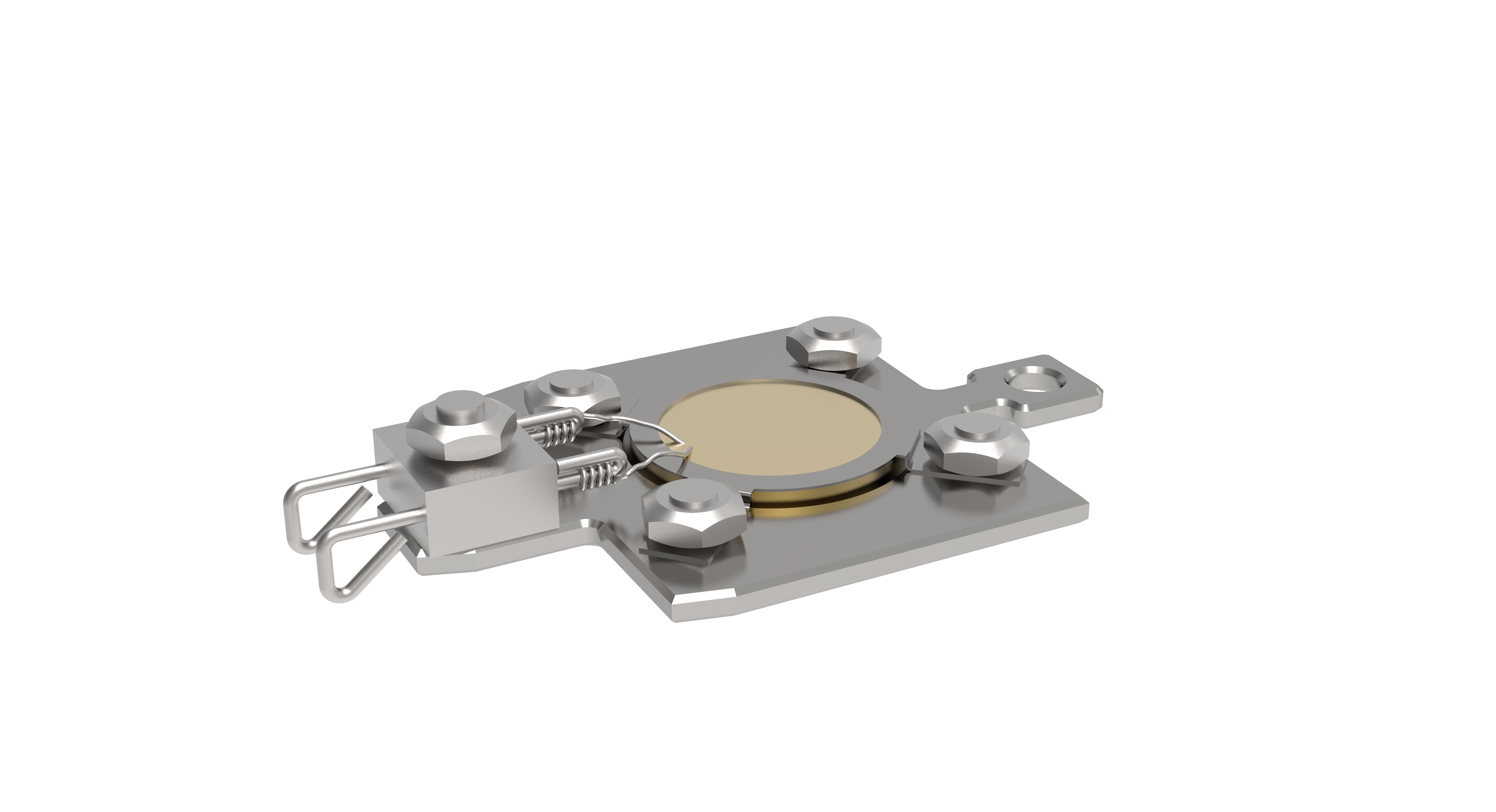

  Temperature control mode:PID program temperature control  Sample holder:Specialized TPD sample holder for precise real-time temperature measurement of samples

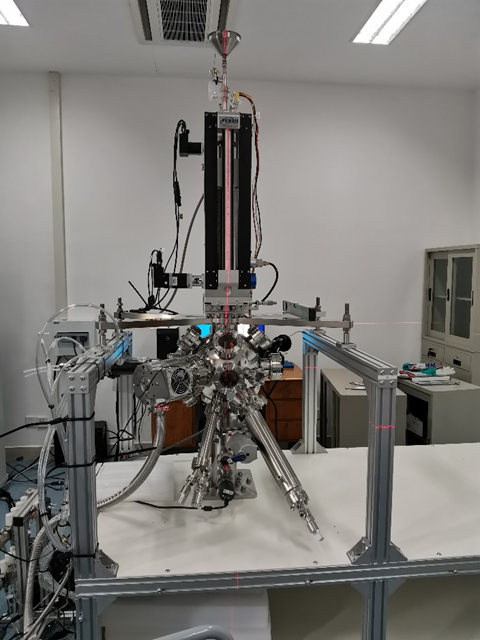

Physical picture
